Home > Products > GSZ3000 5m3h wet-mix explosion proof shotcrete
GSZ3000 5m3h wet-mix explosion proof shotcrete GSZ3000 5m3h wet-mix explosion proof shotcrete GSZ3000 5m3h wet-mix explosion proof shotcrete GSZ3000 5m3h wet-mix explosion proof shotcrete
GSZ3000 5m3h wet-mix explosion proof shotcrete GSZ3000 5m3h wet-mix explosion proof shotcrete GSZ3000 5m3h wet-mix explosion proof shotcrete GSZ3000 5m3h wet-mix explosion proof shotcrete

GSZ3000 5m3h wet-mix explosion proof shotcrete

Rated Output : 5m3 /h

Max. Horizontal Conveying Distance : 35m

Max. Aggregate Size : 15mm

Concrete slump : 8~15cm

Conveying Hose Inner Diameter : 51/64mm

Operating air pressure : 0.3-0.6MPa (43-86PSI)

Chat online Email Inquiry
  • Product introduction
  • Product parameters
Introduction

GSZ3000 wet mix shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix spraying. This 5m3 per hour wet mix shotcrete machine with compact structure, especially GSZ3000A hot sale explosion proof shotcrete machine, its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.

Features

1. It can both for dry and wet shotcrete concrete spraying.
2. The machine is suitable either for manual spraying or by means of a robotic arm.
3. Basic: Electric drive can be combined with tyre chassis.
4. Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel.

Application

GSZ3000 wet mix shotcrete machine is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

GSZ3000 5m3h wet-mix explosion proof shotcrete

GSZ3000 5m3h wet-mix explosion proof shotcrete

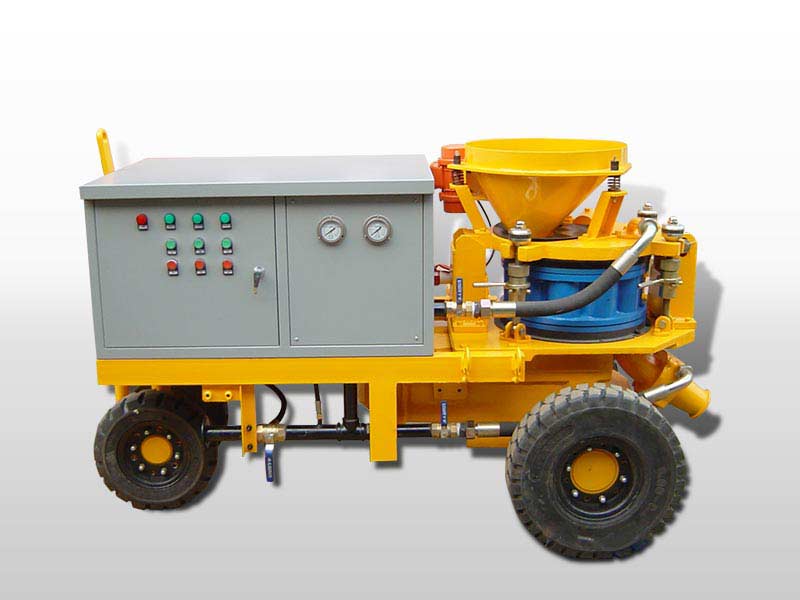

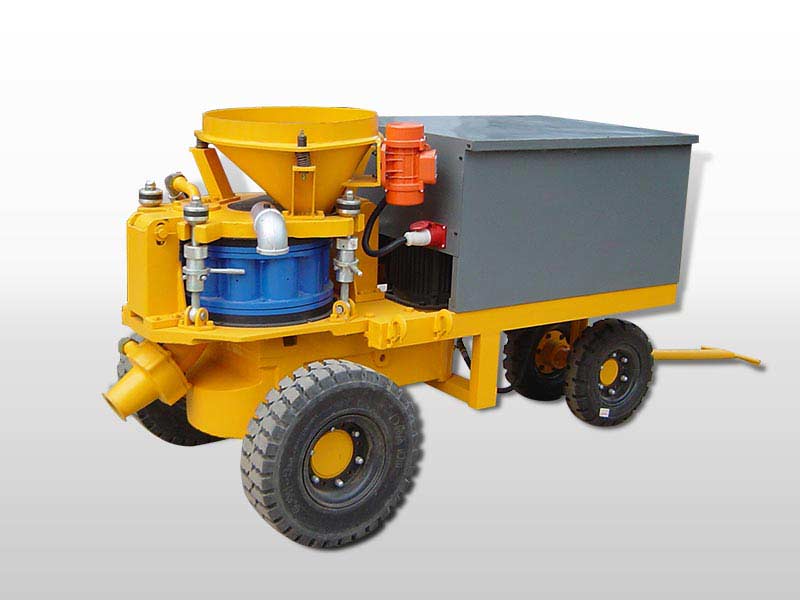

Electric drive shotcrete machine for sale
Rated Output 5m3 /h
Max. Horizontal Conveying Distance 35m
Max. Aggregate Size 15mm
Concrete slump 8~15cm
Conveying Hose Inner Diameter 51/64mm
Operating air pressure 0.3-0.6MPa (43-86PSI)
Air consumption 10~ 12m3 /min(357-430CFM)
Main Motor Power. 7.5kW(10hp)
Dosing Pump BRJ15
Dosing Pump Rated Pressure 0.6MPa(86PSI)
Dosing Pump Output 17.5 -88L /h
Voltage 220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height 1.17m
Rotor Speed 11r/min
Overall Dimension(L × W × H) 2.05× 0.95× 1.18m
Net Weight 1200kg

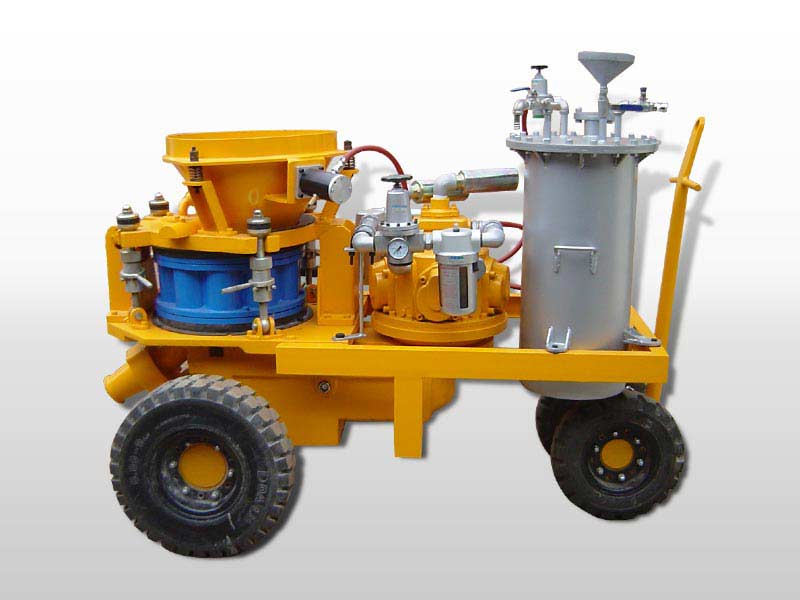

Air motor drive shotcrete machine for salee
Rated Output 5m3 /h
Max. Horizontal Conveying Distance 35m
Max. Aggregate Size Dia.15mm
Concrete slump 8~15cm
Conveying Hose Dia.50/65mm
Operating air pressure 0.2～0.6MPa
Air consumption 22m3/min (12+10)
Loading height 1.17m
Rotor Rev. 11r/min
Rebound ≤10 ％
Air motor power 8kW
Dosing pump model BHA530 Dosing pump
Dosing pump rated pressure 0.5MPa
Dosing pump output 0～100L/h
Overall dimension（L×W×H） 1950×1050×1360mm
Weight 1200kg



Diesel drive shotcrete machine for sale
Output Capacity 3-5m3 /h
Max. Horizontal Conveying Distance 200m
Suitable Mix Ratio(Cement/Sand) ≤1:4~5
Max. Aggregate Size 15 mm
Conveying Hose Inner Diametere Dia.64 mm
Conveying Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 10~12m3/min(357-430CFM)
Material Charging Height 1.1m
Rotor Speed 7.5-11r/min
Diesel Engine 20hp,2200rpm, Yanmar diesel
Diesel Engine Starting Electric start
Clutch Type in Diesel Engine Automatic Clutch
Air Vibrator OR100,Oli
Overall Dimension(length×width×height) 2.55×1.05×1.25m
Dosing pump model BHA530 Dosing tank
Net Weight 1300Kg
Concrete shotcrete machines are widely used in the construction of swimming pools
Concrete shotcrete machines are widely used in the construction of swimming pools

Chat online Email



HSC-3016 concrete spray robotic wet shotcrete system
HSC-3016 concrete spray robotic wet shotcrete system

Unity machine parameter : 8100×2730×3250mm

Weight : 17600Kg

Chat online Email



HSC-2515 concrete sprayer shotcrete system
HSC-2515 concrete sprayer shotcrete system

Unity machine parameter : 7800×2530×3280mm

Weight : 14000kg

Chat online Email
