Product introduction
Product parameters

Introduction

The series concrete spray robotic wet shotcrete system are high-end equipment with top design and manufacture. This robotic wet shotcrete robot machine can be used for tunnel,mining construction. They have multi-function and can be applied widely. It’s an concrete spray equipment with robot arm supplied by professional manufacturer for tunnel or other shotcrete project.

Features

1. Hydrostatic running system, rigid chassis, wet mix braking system.
2. Four-wheel transmission, four-wheel steering, small turning radius, thus make a better operation.
3. Open-type cab, widely views, driver’s seat with 180 º rotation design, thus make the operation flexible and can drive two-way.
4. Reasonable loading design makes the equipment with bigger anti-overturning moment.
5. Full hydraulic telescope and rotate robot arm make the machine with high carrying capability, steady movement, flexible operation, no construction dead zone.
6. Electric motor and diesel two-motor drive.
7. Convey cylinder with long stroke and big cylinder diameter can reduce the abrasion of resistant ring and plate and improve the stability of concrete spraying.
8. Hydraulic drive hopper vibrator, air cooler, cable reel, accelerator pump and water pump can proof electric leakage and pollution.
9. The ratio of accelerator and concrete is in fixed and can be monitored and adjusted by touch screen and remote control.
10. All operation can be controlled by wireless remote control thus reduce labor intensity and improve working efficiency.
11. Diesel engine can make the spray arms move slowly in case the concrete solidification makes the equipment crash when electric power is off.

Application

This equipment are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.

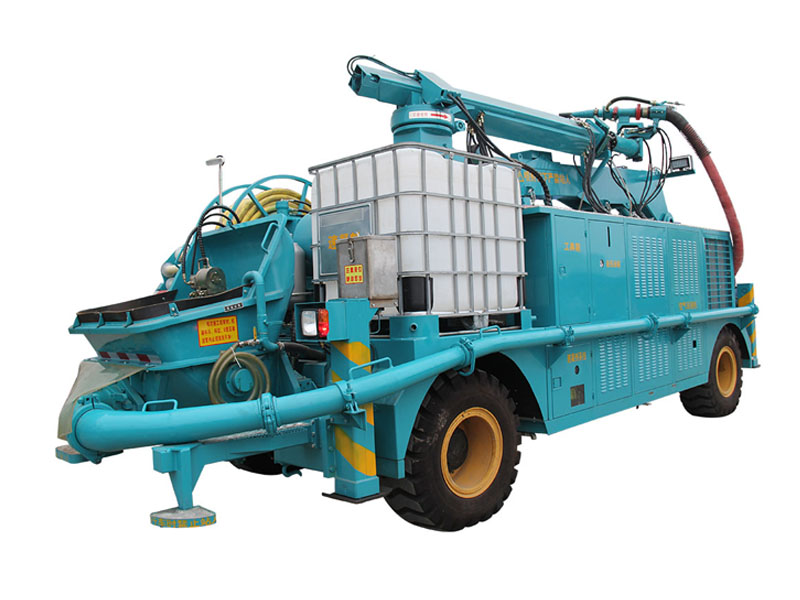

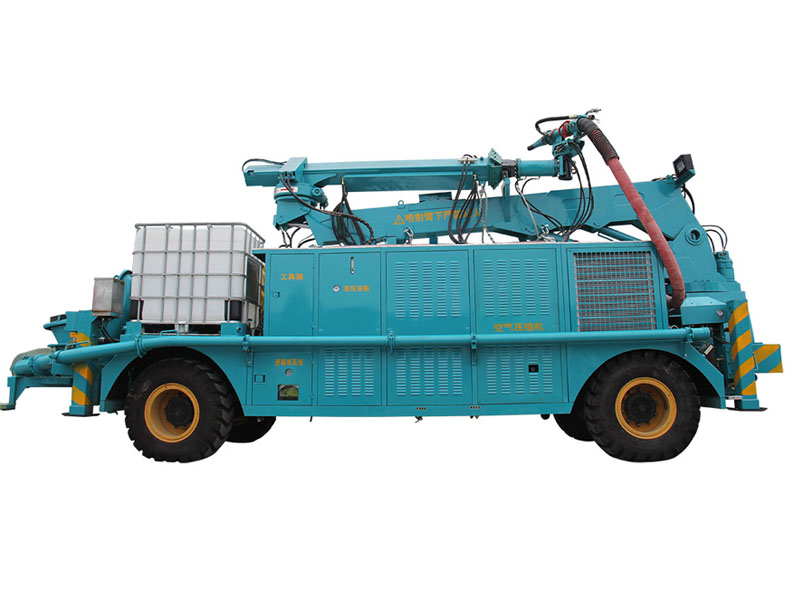

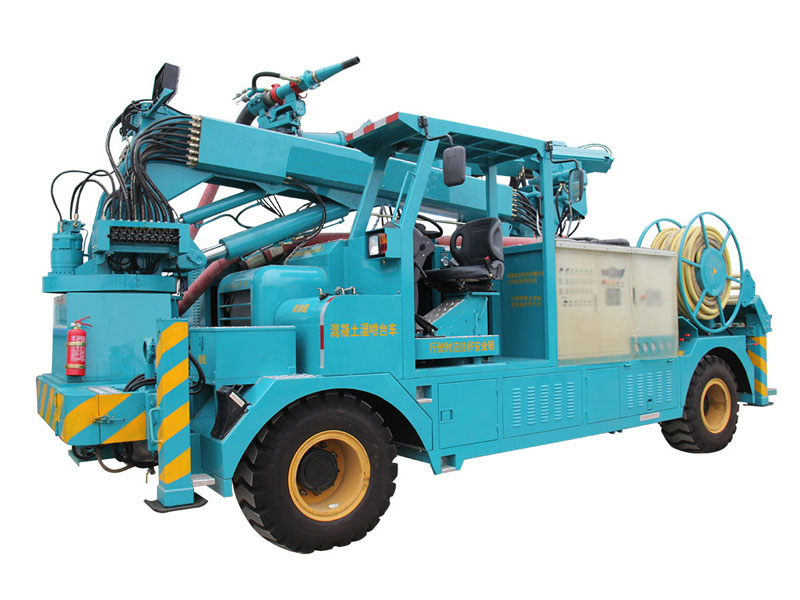

HSC-3016 concrete spray robotic wet shotcrete system

Item		unit	HSC-3016A	HSC-3016B
Unity machine parameter	L×W×H	mm	8100×2730×3250
Unity machine parameter	Weight	kg	17600	17500
Arm and Leg parameter	Arm structure	-	main and spray arm rotate+telescope
Arm and Leg parameter	Max. Spray height	m	16	16
Arm and Leg parameter	Max. Spray width	m	2×14	2×14
Arm and Leg parameter	Max. Spray depth	m	8	8
Arm and Leg parameter	big arm pitching angle	degree	-30°～+60°	-30°～+60°
Arm and Leg parameter	small arm pitching angle	degree	+60º~-30º	+60º~-30º
Arm and Leg parameter	nozzle swing angle	degree	360º	360º
Arm and Leg parameter	nozzle swing angle	degree	240º	240º
Arm and Leg parameter	drive moder	-	electric and diesel	electric
Arm and Leg parameter	electric motor rated power	kW	55	59
Arm and Leg parameter	electric motor working voltage	V/Hz	380/50	380/50
Arm and Leg parameter	diesel engine rated power	Kw	92	92
Pump parameter	rated output	m3/h	30	28
Pump parameter	rated reversing time	/min	17	17
Pump parameter	system pressure	Mpa	23	23
Pump parameter	outlet pressure	Mpa	7	7
Pump parameter	convey cylinder inner diametere	mm	Φ180	Φ180
Pump parameter	convey cylinder stroke	mm	1200	1200
Pump parameter	nozzle diameter	mm	Φ40	Φ40
Chassis parameter	wheel base	mm	4600	4600
Chassis parameter	front and rear axle drive mode	-	4×4	4×4
Chassis parameter	hydraulic oil tank volume	L	580	530
Chassis parameter	fuel tank capacity	L	200	240
Chassis parameter	max. running speed	Km/h	22	22
Chassis parameter	max. gradeability	%	40	40
Chassis parameter	min. ground clearance	mm	450	450
Chassis parameter	min. turning radius	m	5.5	5.5
Chassis parameter	braking distance	m	≤10	≤10
Auxiliary system parameter	Chassis parameter	cable	100	100
Auxiliary system parameter	air compressor power	kW	75	75
Auxiliary system parameter	air compressor output	m3/min	15	15
Auxiliary system parameter	air compressor working pressure	Mpa	0.5	0.5
Auxiliary system parameter	additive output	L/h	800	800
Auxiliary system parameter	additive system pressure	Mpa	1.0	1.0
Auxiliary system parameter	coagulant tank capacity	L	1000	1000
