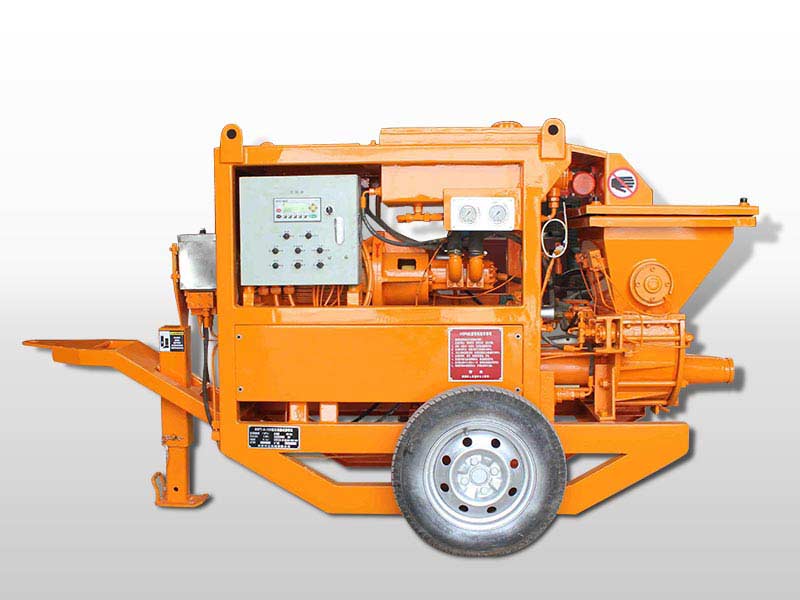

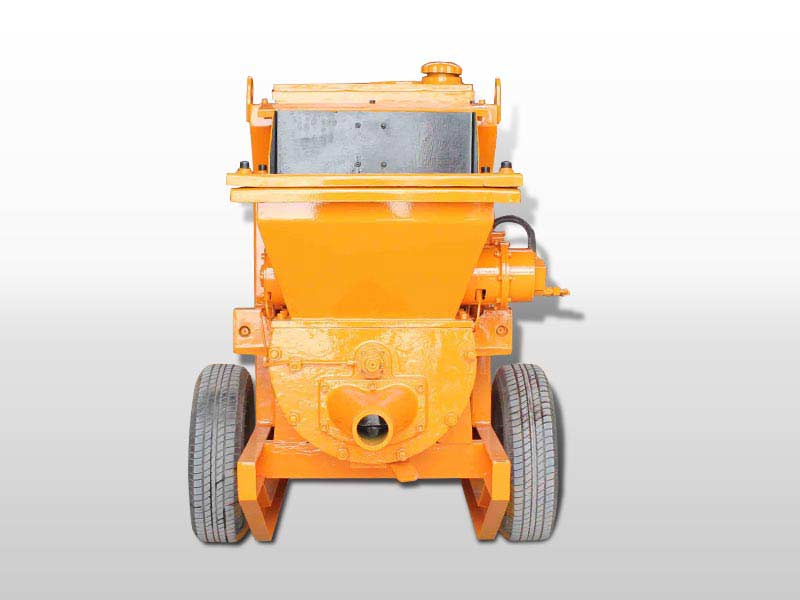

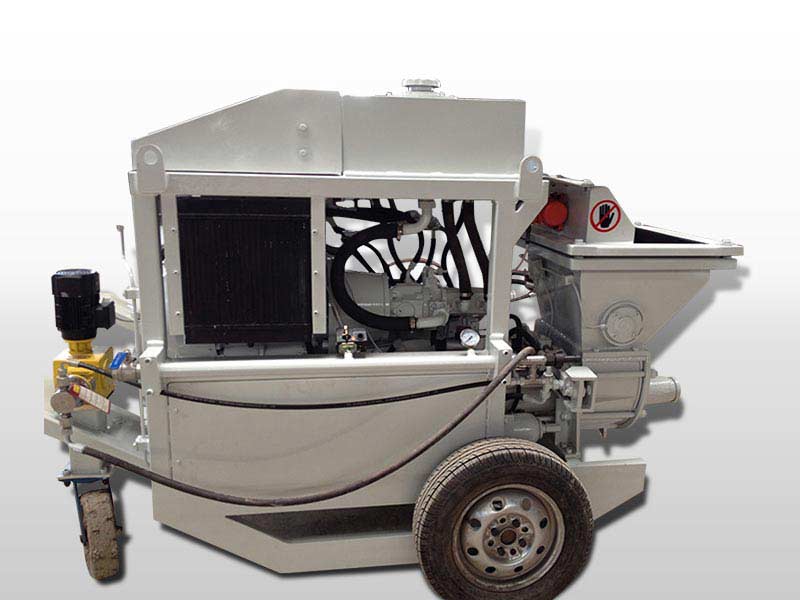

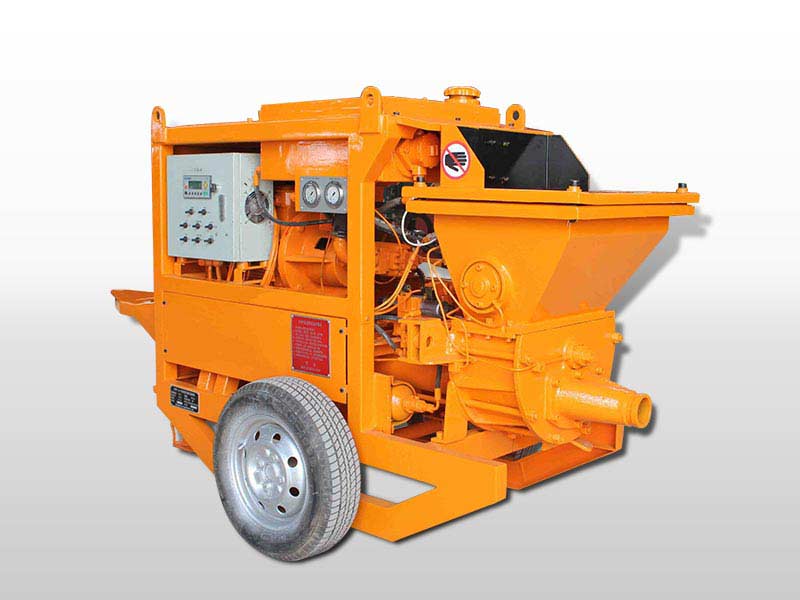

GPS-7 fine stone concrete shotcrete pump

Productivity : 7

Max. pressure : 15

Fineness modulus of aggregate : ≥2.5

Dosage of liquid accelerator : 3.5

Conveying hose ID : 51 (2″)

Concrete slump : 8~15

Chat online Email Inquiry
  • Product introduction
  • Product parameters
Introduction

GPS-7 multi-function high pressure shotcrete pump can do both fine stone concrete pumping and shotcreting, so also could be used as mini concrete pump and wet concrete spraying machine. The shotcrete concrete pump hot sale in 2016. The concrete shotcrete pump adopted internationally hydraulically driven wet spray technology, thus transmission distance and height increased 3-5 times than the rotor wet spray machine.

Features

1. Wet spraying machine has stepless speed change. The conveying output is 0-7 cubic meters / hour.
2. The machine has hydraulic power. The export is connected with high pressure hose. The nozzle is connected with a small 10 cubic meters of air compressors to achieve wet spraying. This changed the traditional use of large 20 cubic meters of air compressor.
3. Compared with rotary pneumatic wet spraying machine, this machine has a smaller size, superior performance, lower maintenance costs, easier to operation, better flexibility, and widely range of applications.

Application

It’s mainly used for wet spraying for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on.

GPS-7 fine stone concrete shotcrete pump

GPS-7 fine stone concrete shotcrete pump
Parameter Unit Data
Productivity m³/h 7
Max. pressure mm 15
Fineness modulus of aggregate   ≥2.5
Dosage of liquid accelerator % 3.5
Conveying hose ID mm 51 (2″)
Concrete slump cm 8~15
Systematic air pressure MPa ≥0.5
Pump outlet pressure MPa 6
Air consumption m3/min ≤6
Max. conveying distance Horizontal m
Max. conveying distance Vertical m
Dust alongside machine mg/m3 ≤6
Rebound(Under standard technology) % Average≤15
Motor power kW 11/15
Gauge mm 600.762.900
Overall dimension(Tyre type)(L×W×H) mm 2500×1010×1450
Weight kg 960
