Refractory coating machine for sale

2024-03-14

The refractory coating machine for sale is mainly used to spray a certain percentage of refractory at high speed through compressed air to form a refractory layer on the surface of the sprayed structure. The refractory coating machine is characterized by high construction speed, high efficiency, and high engineering quality, and is widely used for the thermal repair of industrial furnace refractories, tunnels, culverts, subways, hydropower projects, and underground projects. Concrete spraying, mining roads, highway slope protection, concrete spraying, construction site support, thermal sandblasting of industrial furnace fireproof layers, etc. The refractory coating machine for sale is highly evaluated by users for its excellent quality, heavy workload, high efficiency, easy operation, and convenient maintenance.

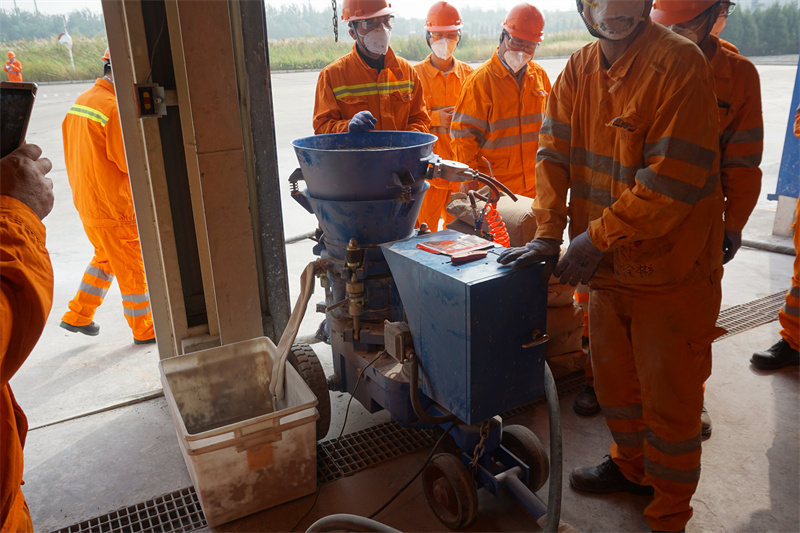

$Refractory coating machine for sale$

Features of refractory coating machine for sale:

1. The refractory coating machine for sale has multiple functions such as mixing, transporting, and spraying.

2. The concrete casting quality is good, the construction speed is fast, and labor costs can be saved.

3. The refractory coating machine for sale is a stereotyped product with excellent quality and durability, and there are enough spare parts to install the parts, which is convenient for the user to replace in time.

$Refractory coating machine for sale$

The refractory coating machine for sale mainly consists of a drive unit, a rotor assembly, an air duct system, a spray system, and an electric control box.

Drive: A completely sealed oil immersion reducer 11 is mounted at the bottom of the machine, equipped with a 3-speed gear transmission, with a total gear ratio of approximately 87 and a gear shifting efficiency of approximately 92%. The electric motor 13 is mounted perpendicular to the speed reducer in parallel with the rotor shaft.

Rotor Assembly: This refractory coating machine for sale employs a unique straight-through anti-adhesive material rotor, each round hole is lined with a plastic cavity made of non-adhesive material, so the machine's ability to process gun material Is improved and the cleaning and maintenance workload is reduced.

Airpass system: Three spherical valves are used to control the upper airpass leading to the main airpass and rotor, and the down airpass leading to the cyclone. Another small air duct is used to supply air to the hopper vibrator. On the leeward road, there is also a pressure gauge to monitor the working pressure of the water supply pipe.

Spray system: The system consists of a delivery hose and an auxiliary humidification micro-control nozzle assembly. The conveying pipe of the refractory spraying machine uses an abrasion-resistant rubber hose, and the nozzle adopts the principle of a double spherical multiphase flow chamber to mix the spray paint and mixture more thoroughly under sufficient airflow.

Electrical control: Refractory coating machine includes frequency conversion motor, frequency conversion control, external frequency conversion adjustment knob, professional famous and high-quality electrical control, and dust-proof cabinet.

If you are interested in the refractory coating machine for sale, please contact us!
