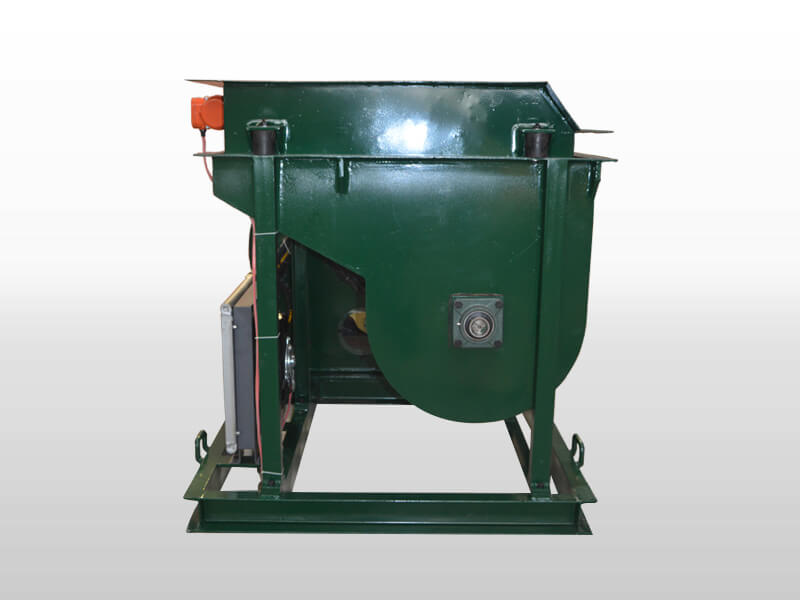

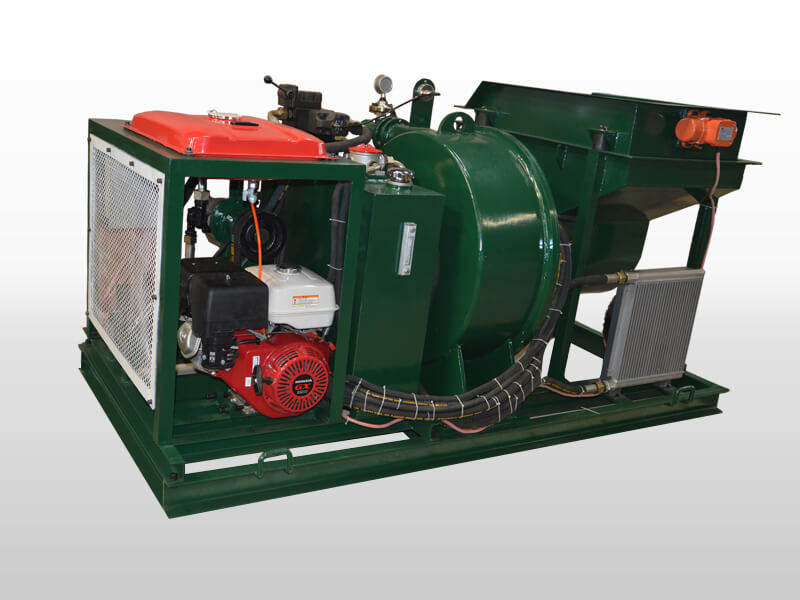

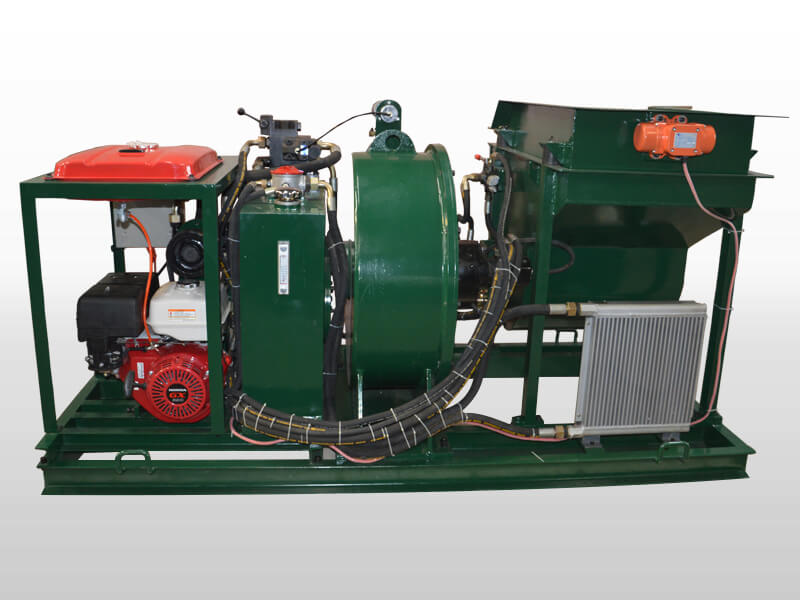

GDS2000G gasoline engine shotcrete pump

Working Pressure : 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)

Output : 4-8m3/h

Max. Aggregate : 10mm

Squeeze Hose : ID 50mm

Conveying Hose : ID 50mm

Squeeze pump : GH50-680

Chat online Email Inquiry

Product introduction
Product parameters

Introduction

The GDS2000G gasoline engine small mini shotcrete pump is a lightweight hose pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. It can pump 10mm aggregate size mortar, cement slurry, foam concrete…This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This shotcrete pump could be used for dome building, swimming pool etc. projects.

Features

1. Highly-reliable direct drive planetary gearbox.
2. Infinite speed variation.
3. Specially hopper/ agitator stir design.
4. Honda GX390 and GX630 gasoline engine for option.
5. Easily operating on site work.
6. Standard spare part supply.

Application

1.For pumping/grouting/spraying mortar/plaster.
2.For pumping cellular light weight concrete .
3.For pumping of wet normal concrete, acceptable max. aggregate size is 10mm.

GDS2000G gasoline engine shotcrete pump

HSC-3016 concrete spray robotic wet shotcrete system

Unity machine parameter : 8100×2730×3250mm

Weight : 17600Kg

Chat online Email

HSC-2515 concrete sprayer shotcrete system

Unity machine parameter : 7800×2530×3280mm

Weight : 14000kg

Chat online Email

HSC-2008 shotcrete machine with spray arm

L×W×H : 7100×2150×2700mm

Weight : 9000kg

Chat online Email

How to buy and get more information

If you want to learn more about our shotcrete machine、solutions & service please contact us now

01

Understanding you needs

First, you can communicate with our professional shotcrete machine consultant through email, telephone,form or online chat.

Here are some questions to know about you，eg：
1.The application of shotcrete machine.
2.The application of shotcrete machine a methods.
02

Make your solution

Next, according to your needs and conditions of use, we will provide and reliable shotcrete machine system solutions.

---"Let your shotcrete machineoperate more efficiently and economically"
03

Keep your business on track

We will regularly communicate with you to understand your shotcrete machineoperation and guide according to your needs. If you have other needs, we will provide you with the first time service.

Item	Description
Working Pressure	1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)
Output	4-8m3/h
Max. Aggregate	10mm
Squeeze Hose	ID 50mm
Conveying Hose	ID 50mm
Squeeze pump	GH50-680
Power	Honda GX390 Gasoline Engine(lowpressure)
Power	Honda GX630 Gasoline engine(high pressure)
Hopper volume	240 Liter
Hopper rated rev.	76r/min
Oil tank	130 Liter
Requested air compressor	≤6
Rebound（Under standard technology）	6m3/min, 0.6Mpa Pressure
Vertical Conveying Distance	15 m (Chinese Hose)/30 m (Trelleborg Hose)
Horizontal Conveying Distance	40 m (Chinese Hose)/80 m (Trelleborg Hose)
Weight	900kg
Overall Dimension	2350x1250x1450mm
